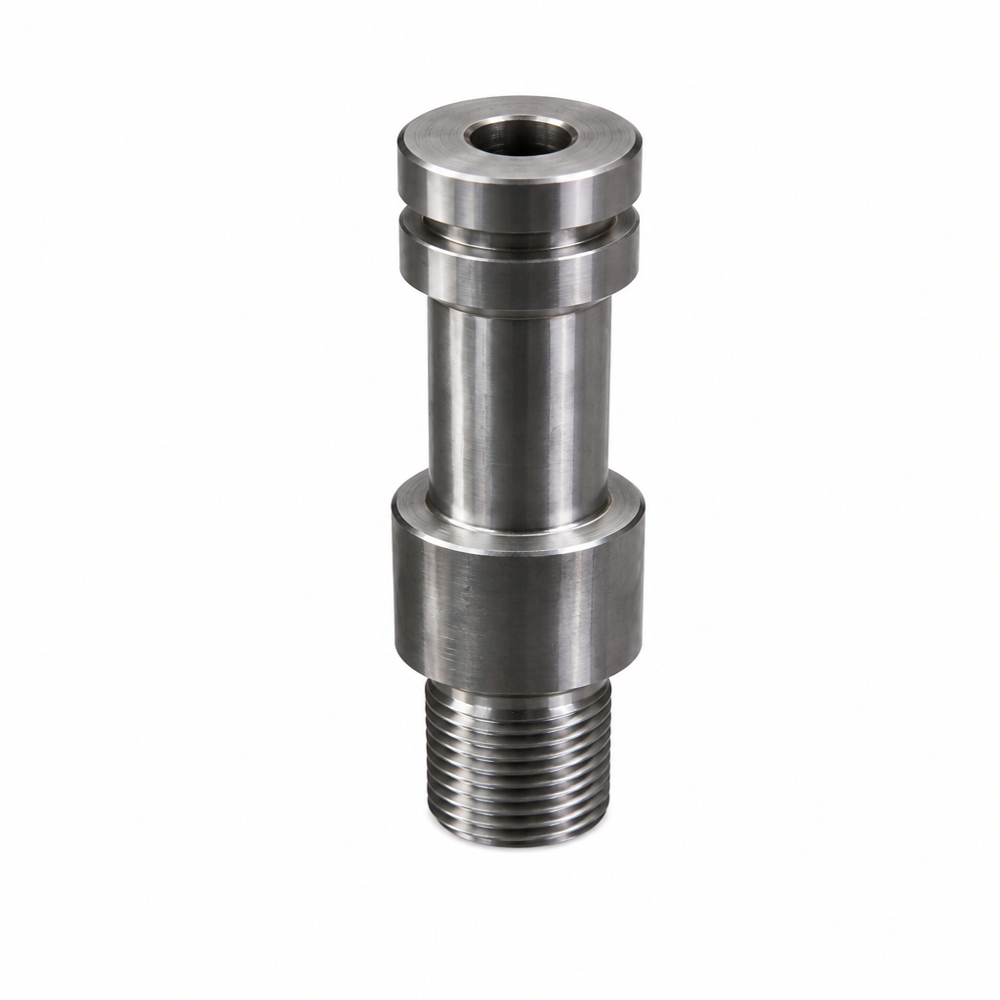

CNC Pin

Name: CNC Pin
Brand: NEHA ENGG.WORKS
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

CNC Pin Specification

Machine Type
CNC Vertical & Horizontal Machining Centers

Load Capacity
High tensile capable, up to 6000 N

Coating
Uncoated / Plain or Black Oxide (may vary)

Spindle Speed
Compatible with up to 12000 rpm tool holders

Thread Type
Metric/UNC precision external thread

Shape
Cylindrical with stepped and threaded ends

Hardness
HRC 55-60

Weight
30-120 gm (depending on size)

Accuracy
Precision ground for repeat positioning

Cutting Speed
N/A - Not a cutting part

Method
CNC Turning, Grinding

Size
M12 x Custom length (variable by requirement)

Type
Precision CNC Pin / Pull Stud

Material
Alloy Steel / Stainless Steel / Hardened Steel

Tolerance
0.01 mm

Surface
Polished/Metal Finish

Use
CNC machine tool component mounting and alignment

Application
Machining, Tool Holding, Precision Fixture

Usage & Applications
Used for securing tool holders in CNC machines, and alignment in fixtures

Component Life
Long service life with regular maintenance

Corrosion Resistance
Moderate to High depending on steel grade

Operating Temperature
-20C to 300C

Customization
Available for dimension and thread type

Packaging
Individual Polybag/Boxed

Standard
DIN/ISO tool holder compatibility

Heat Treatment
Case hardened for wear resistance

End Type
Flat or slightly chamfered end

Thread Pitch
1.75 mm (example, varies by model)

CNC Pin Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
5-7 Days

CNC Pin About

Discover the latest CNC Pin-precision-engineered for CNC vertical and horizontal machining centers. Now featuring a dazzling price cut and exclusive promotion, this grandiose pin offers long service life with its lavish case-hardened, corrosion-resistant alloy or stainless steel body (DIN/ISO compatible). Customization options let you tailor thread type and dimensions for your needs. Benefit from precise 0.01 mm tolerance, polished metal finish, and high load capacity (up to 6000 N). Each pin arrives individually packaged for your convenience. Upgrade your tool holding with this remarkable offer!

Key Applications and Plant Use of CNC Pin

CNC Pins are widely used for securing tool holders in CNC machines and for alignment in precision fixtures. These precision-engineered pins perform crucial roles in machining applications, ensuring accuracy and proper mounting. Commonly found in manufacturing plants, workshops, and tool rooms, they are essential components for tool holding, alignment, and repetitive positioning tasks, supporting streamlined operations across various industries.

Main Export and Domestic Markets for CNC Pin

We offer CNC Pins to a broad range of markets, efficiently transporting goods to major export destinations worldwide via FOB ports. Our proposals ensure competitive pricing for both international and domestic clients across India. The product is in high demand on the Indian market, with a significant presence in metropolitan and industrial regions. Our streamlined logistics guarantee timely delivery and customer satisfaction every transaction.

FAQ's of CNC Pin:

Q: How does the heat treatment of the CNC Pin enhance its performance?

A: The heat treatment process case-hardens the CNC Pin, providing excellent wear resistance and a high hardness level (HRC 55-60). This significantly prolongs the pin's lifespan and ensures reliable performance in demanding machining applications.

Q: What are the available options for customization?

A: You can customize the CNC Pin in terms of dimensions, thread type (metric or UNC), coating finish, and end type. This flexibility allows the pin to suit various tool holder systems and specific application requirements.

Q: Where are CNC Pins typically used in industrial settings?

A: CNC Pins are predominantly used in machining workshops, manufacturing plants, and tool rooms for tool holder mounting, fixture alignment, and precision location within CNC vertical and horizontal machining centers.

Q: What is the process for maintaining CNC Pins to ensure long service life?

A: To extend the service life of CNC Pins, regular inspection, proper cleaning, and timely replacement when signs of wear are observed are recommended. This routine maintenance helps maintain their accuracy and load-bearing capability.

Q: What is the benefit of using a CNC Pin with a precision ground tolerance of 0.01 mm?

A: A precision ground tolerance of 0.01 mm ensures repeatable positioning and stable tool holding during high-speed machining, which is critical for achieving accurate and consistent results in CNC operations.
