Cnc Components

• Accuracy
• High precision CNC-machined, 0.01 mm

• Application
• Used in automated equipment, machine frameworks, construction, and fabrication

• CNC
• Yes

• Coating
• None or as per requirement

• Cutting Speed
• 80-120 m/min (varies with tool and material)

• Hardness
• Rockwell B60-B80

• Load Capacity
• Up to 100 kg (varies per application)

• Machine Type
• CNC milling machine, CNC laser cutting machine

• Material
• Mild steel

• Method
• Precision CNC cutting and drilling

• Shape
• Rectangular plate with rounded edge and holes

• Size
• Approx. 200mm x 50mm x 10mm

• Spindle Speed
• Up to 6000 RPM

• Surface
• Other , Smooth, matte finish

• Thread Type
• Other, Not applicable (unthreaded plate holes)

• Tolerance
• 0.01 mm

• Usage & Applications
• Industrial, mechanical, fabrication, automation

• Use
• Mounting, structural support, machinery assembly

• Weight
• Approx. 350g

• Accuracy
• High-precision, up to 10 microns

• Application
• Flow control valve assemblies

• CNC
• Yes

• Coating
• Optional hard chrome plated

• Cutting Speed
• 80-150 m/min (for stainless steel)

• Hardness
• HRC 30-35

• Load Capacity
• Supports standard process valve loading

• Machine Type
• Valve body and spool machining

• Material
• Stainless Steel (commonly SS304/316)

• Method
• CNC turning and milling

• Shape
• Cylindrical with hexagonal base

• Size
• Custom as per design (example: 18 mm diameter x 70 mm length)

• Spindle Speed
• 1800-3000 RPM

• Surface
• Other , Polished, smooth finish

• Thread Type
• Other, Metric (customizable)

• Tolerance
• 0.01 mm

• Type

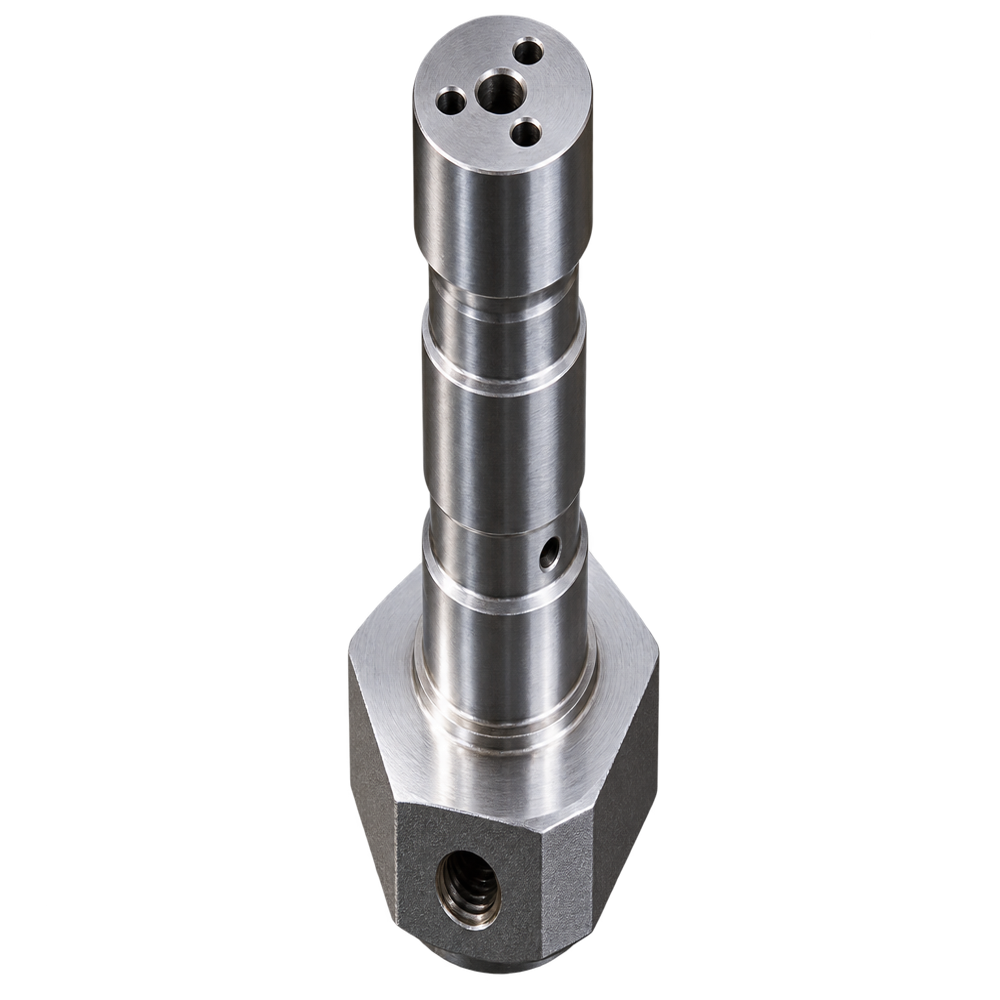

• Other, Control valve spool

• Usage & Applications
• Industrial automation, process control, fluid power systems

• Use
• Hydraulic and pneumatic control systems

• Weight
• Approx. 120g (will vary with size)

• Accuracy
• High precision

• Application
• Industrial Automation, Machinery

• CNC
• Yes

• Coating
• Chrome or Nickel plated

• Cutting Speed
• As per material and finish requirements

• Hardness
• HRC 50-60 (as per specification)

• Load Capacity
• High load-bearing capacity (as per application)

• Machine Type
• CNC Lathe/Turning center processed

• Material
• High tensile steel, EN8, Stainless Steel (as per requirement)

• Method
• CNC Machining

• Shape
• Cylindrical/Rod

• Size
• Customized diameter and length

• Spindle Speed
• Optimized for surface finish

• Surface
• Other , Polished/Chrome plated

• Thread Type
• Other, External thread or custom (as per specification)

• Tolerance
• 0.01 mm

• Type

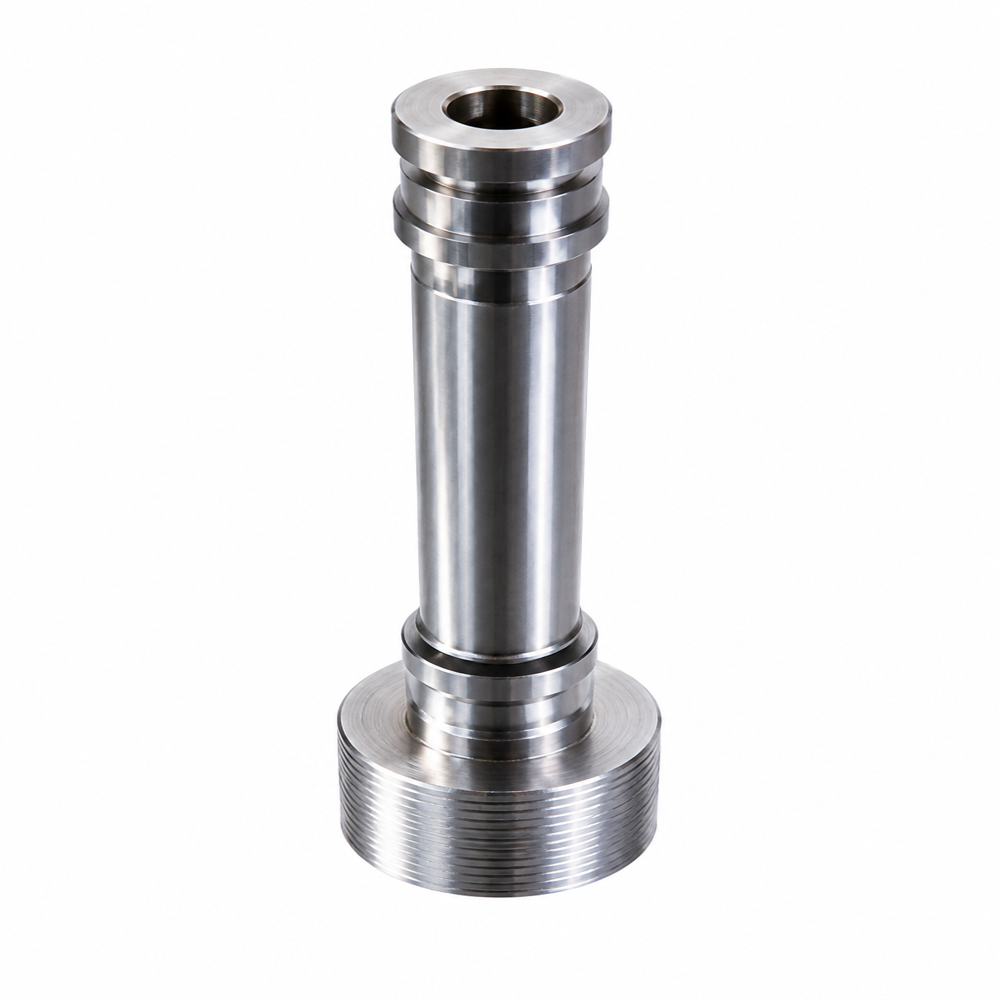

• Other, Piston Rod

• Usage & Applications
• Robotic arms, Injection molding machines, Presses

• Use
• Hydraulic/Pneumatic Cylinders

• Weight
• Depends on dimension (customizable)

• Accuracy
• High concentricity, 0.03 mm

• Application
• Machinery, Automation systems, Conveyors

• CNC
• Yes

• Coating
• Anti-corrosive Coating

• Cutting Speed
• N/A (not applicable for couplings)

• Hardness
• HRC 55-60

• Load Capacity
• Up to 800 Nm (varies according to dimensions)

• Machine Type
• Universal (suitable for various machines)

• Material
• High-grade Alloy Steel

• Method
• Precision Machined

• Shape
• Cylindrical

• Size
• Customizable (standard sizes available upon request)

• Spindle Speed
• Up to 7500 RPM

• Surface
• Other , Polished

• Thread Type
• Other, Metric (internal fixation bolts)

• Tolerance
• 0.01 mm

• Type

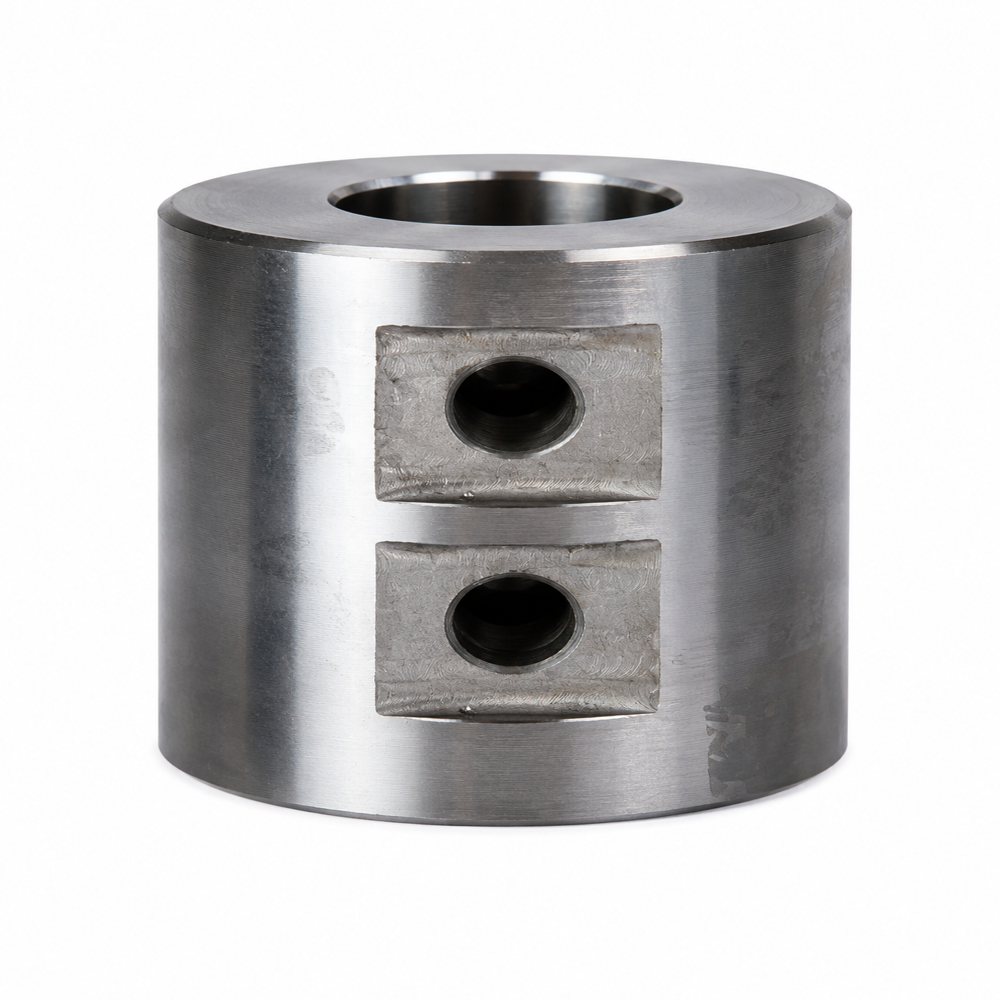

• Other, Rigid Coupling

• Usage & Applications
• Industrial equipment, Automotive, Mechanical drives

• Use
• Power transmission, Connecting two shafts

• Weight
• Approx. 250g (varies based on size)

• Accuracy
• 0.01 mm

• Application
• CNC Machines, Automation Equipment

• CNC
• Yes

• Coating
• None/Optional Anti-Rust Coating

• Cutting Speed
• Up to 5000 mm/min

• Hardness
• HRC 50-55

• Load Capacity
• Up to 800 Nm torque (varies by size)

• Machine Type
• CNC Lathe, Milling Machine, Machining Center

• Material
• Hardened Alloy Steel

• Method
• CNC Machined

• Shape
• Cylindrical with Stepped Profile

• Size
• Customizable / Standard sizes available

• Spindle Speed
• Up to 6000 rpm

• Surface
• Other , Polished, Smooth Finish

• Thread Type
• Other, External Threaded End

• Tolerance
• High Precision 0.01mm

• Type
• Other, Drive Shaft

• Usage & Applications
• Machinery, Robotics, Industrial Automation

• Use
• Rotational Power Transmission

• Weight
• Depends on size (typically 2-5 kg)

• Accuracy
• Precision ground for repeat positioning

• Application
• Machining, Tool Holding, Precision Fixture

• CNC
• Yes

• Coating
• Uncoated / Plain or Black Oxide (may vary)

• Cutting Speed
• N/A - Not a cutting part

• Hardness
• HRC 55-60

• Load Capacity
• High tensile capable, up to 6000 N

• Machine Type
• CNC Vertical & Horizontal Machining Centers

• Material
• Alloy Steel / Stainless Steel / Hardened Steel

• Method
• CNC Turning, Grinding

• Shape
• Cylindrical with stepped and threaded ends

• Size
• M12 x Custom length (variable by requirement)

• Spindle Speed
• Compatible with up to 12000 rpm tool holders

• Surface
• Other , Polished/Metal Finish

• Thread Type
• Other, Metric/UNC precision external thread

• Tolerance
• 0.01 mm

• Type

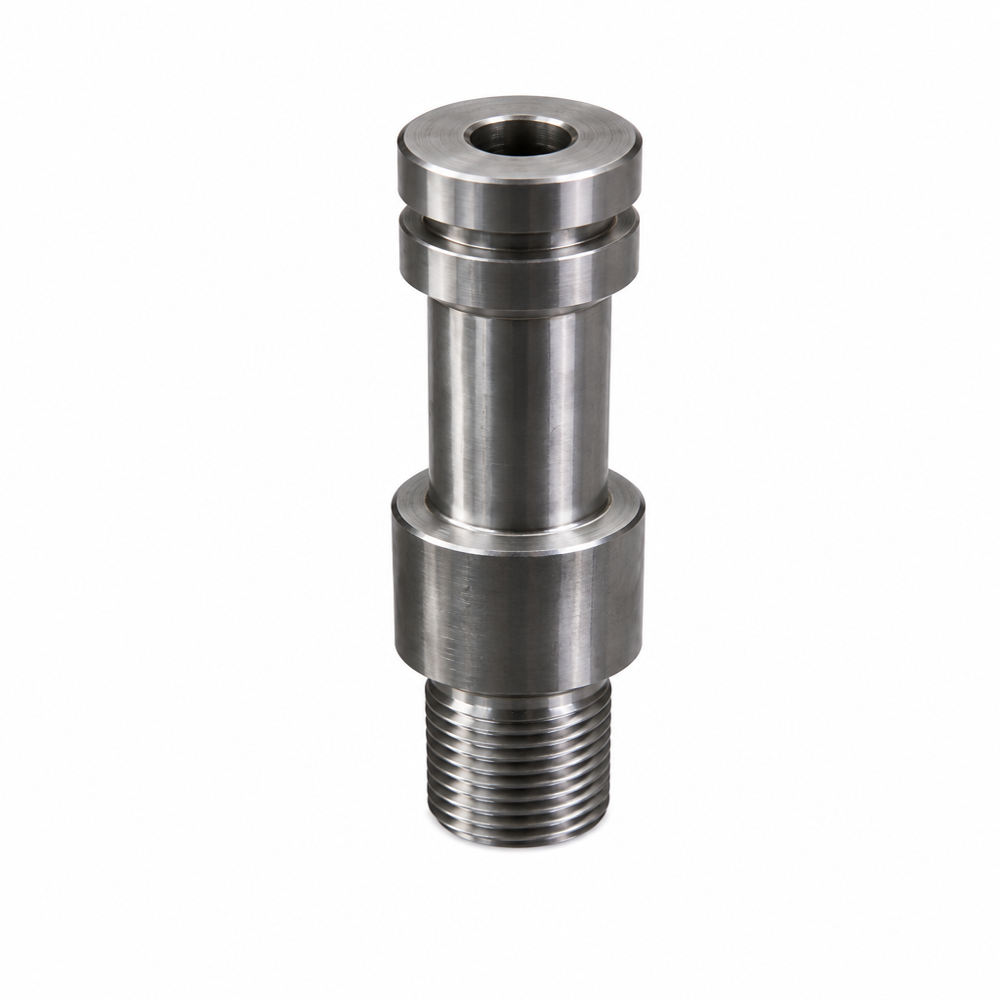

• Other, Precision CNC Pin / Pull Stud

• Usage & Applications
• Used for securing tool holders in CNC machines, and alignment in fixtures

• Use
• CNC machine tool component mounting and alignment

• Weight
• 30-120 gm (depending on size)
