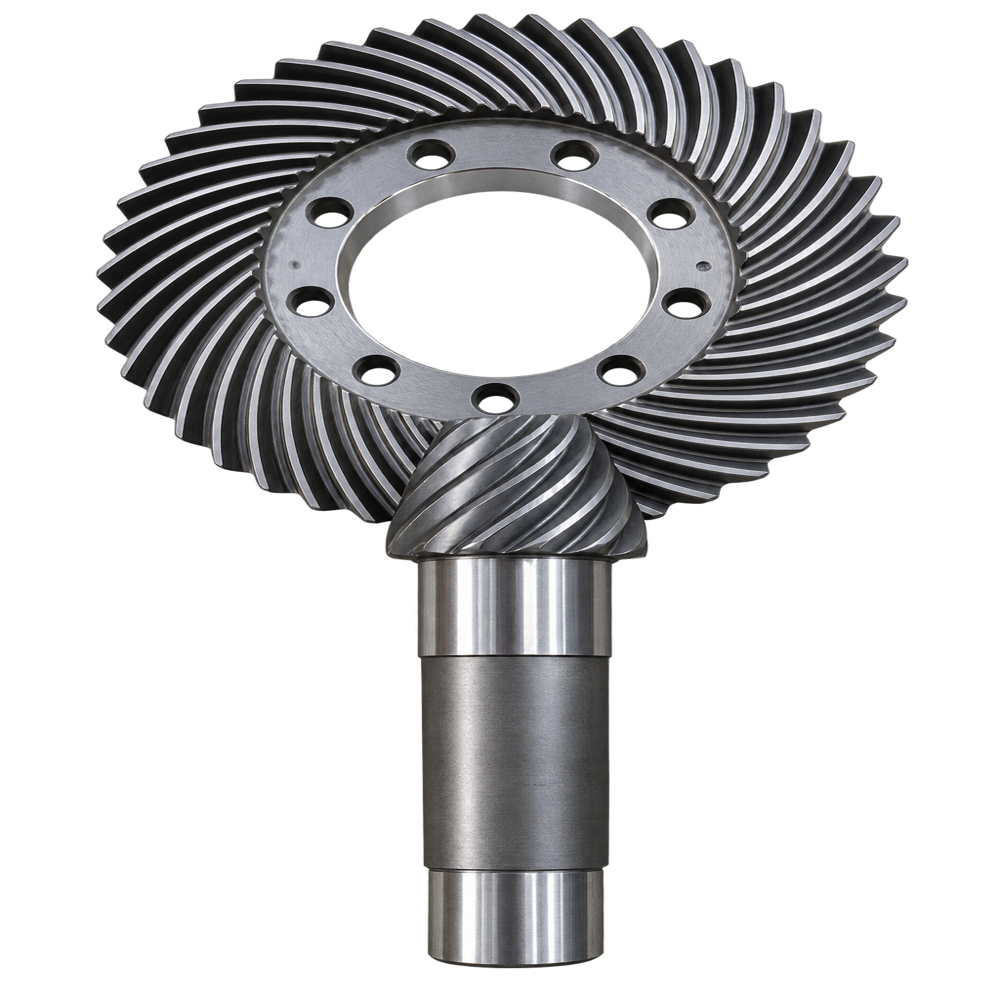

Spiral Bevel Gear Assembly

Name: Spiral Bevel Gear Assembly
Brand: NEHA ENGG.WORKS
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Spiral Bevel Gear Assembly Specification

Size
Custom sizes available

Load Capacity
High torque transmission capability

Usage & Applications
Automotive, industrial machinery, differential gearboxes, power transmission

Noise Level
Low noise operation

Weight
Depends on dimensions and material, typically 5-35 kg

Bore Size
Customized as required

Outer Diameter
As per design, up to 600 mm

Surface Finish
Precision ground and hardened

Lubrication Type
Grease or oil bath lubrication

Gear Type
Spiral bevel gear

Material
High strength alloy steel

Type
Spiral Bevel Gear Assembly

Gear Tooth Profile
Spiral

Max. Diameter
Up to 600 mm (customizable)

Max. Length
Varies as per application, generally up to 400 mm

Car Make
Universal/Custom as per specification

Manufacturing Process
CNC machining, lapping, carburizing, grinding

Mating Pinion
Matched set provided

Customization
Available for OEMs and specific industry applications

Module Range
1.5 to 10 (as per requirement)

Accuracy Grade
DIN 6-8 or AGMA 8-10

Operating Temperature
-20C to 120C (typical range)

Maintenance
Periodic lubrication and inspection recommended

Packaging
Rust-proof wrapping, boxed/crated for safe transport

Corrosion Resistance
Surface treated for enhanced resistance

Helix Angle
Generally 35-43

Hardness
HRC 50-62 (after heat treatment)

Mounting
Flange mounted with bolt holes

Backlash
Controlled per application requirements

Spiral Bevel Gear Assembly Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

Spiral Bevel Gear Assembly About

Unlock unrivaled performance with our hot-selling Spiral Bevel Gear Assembly, engineered for exceptional torque transmission and universal fit. Pristine precision, achieved through CNC machining and fine lapping, ensures praiseworthy operation even under tough industrial conditions. Crafted from high-strength alloy steel, each gear is surface hardened to HRC 50-62 and boasts a DIN 6-8 or AGMA 8-10 accuracy grade. Tailored to your needs, we offer customized modules (1.5-10), helix angles, and bore sizes at the best price. Corrosion-resistant finishes and robust packaging guarantee lasting durability and trouble-free delivery worldwide.

Features & Applications of Spiral Bevel Gear Assembly

Our Spiral Bevel Gear Assembly stands out for its high-strength alloy construction, precision ground tooth profiles, and low-noise operation. Designed to operate between -20C and 120C, this gear assembly finds its place in automotive, heavy machinery, power transmission, and differential gearbox applications. The flange-mounted setup allows for secure installation, while customization ensures compatibility across diverse industrial requirements. For optimal performance, periodic lubrication and inspection are recommended throughout its lifecycle.

Delivery Time, Samples, and Supply Capability

Spiral Bevel Gear Assemblies are shipped swiftly, with delivery timelines provided upon quotation and order valuation. Samples can be arranged for initial assessment, ensuring our solution aligns with your requirements. With robust supply ability, we serve OEMs and manufacturers globally, meeting both low and high-volume demands. Our commitment to safe packaging and reliable transit ensures your products arrive in praiseworthy and pristine condition, every time.

FAQ's of Spiral Bevel Gear Assembly:

Q: How is the Spiral Bevel Gear Assembly tailored for specific industry applications?

A: We offer customization in module range, bore size, overall dimensions, and material grade to meet the unique requirements of each industry, ensuring optimal fit and performance.

Q: What is the process for manufacturing these gear assemblies?

A: Manufacturing involves advanced CNC machining, lapping, precision carburizing, and grinding, followed by a corrosion-resistant surface treatment and stringent quality checks to ensure exceptional durability.

Q: When should the gear assembly be lubricated or inspected?

A: Periodic lubrication and inspection should be conducted as recommended-frequency depends on load and operational environment, helping to maintain pristine performance and extend gear longevity.

Q: Where are Spiral Bevel Gear Assemblies commonly used?

A: They are widely used in automotive differentials, industrial machinery, power transmission systems, and other applications requiring angled torque transfer with high reliability.

Q: What benefits does the matched pinion set offer?

A: The matched pinion set guarantees accurate meshing, reduced noise, and enhanced efficiency, leading to exceptional performance and prolonged service life.

Q: How does the surface treatment contribute to corrosion resistance?

A: A specialized surface treatment is applied to enhance corrosion resistance, allowing the gear assembly to withstand harsh operational environments and ensure a praiseworthy lifespan.
